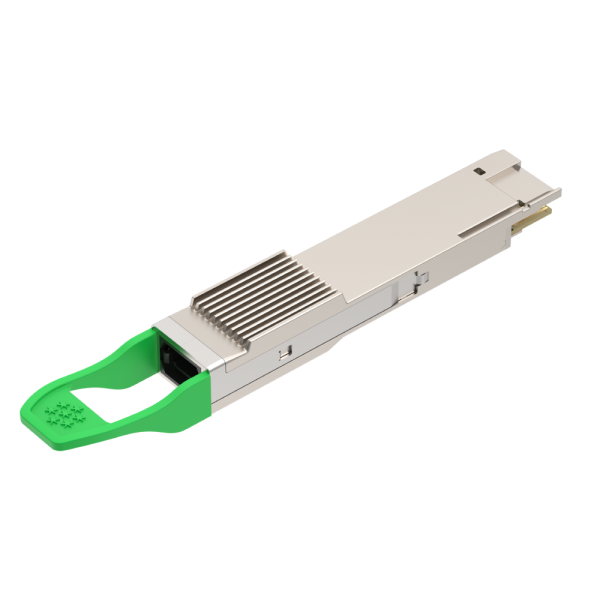

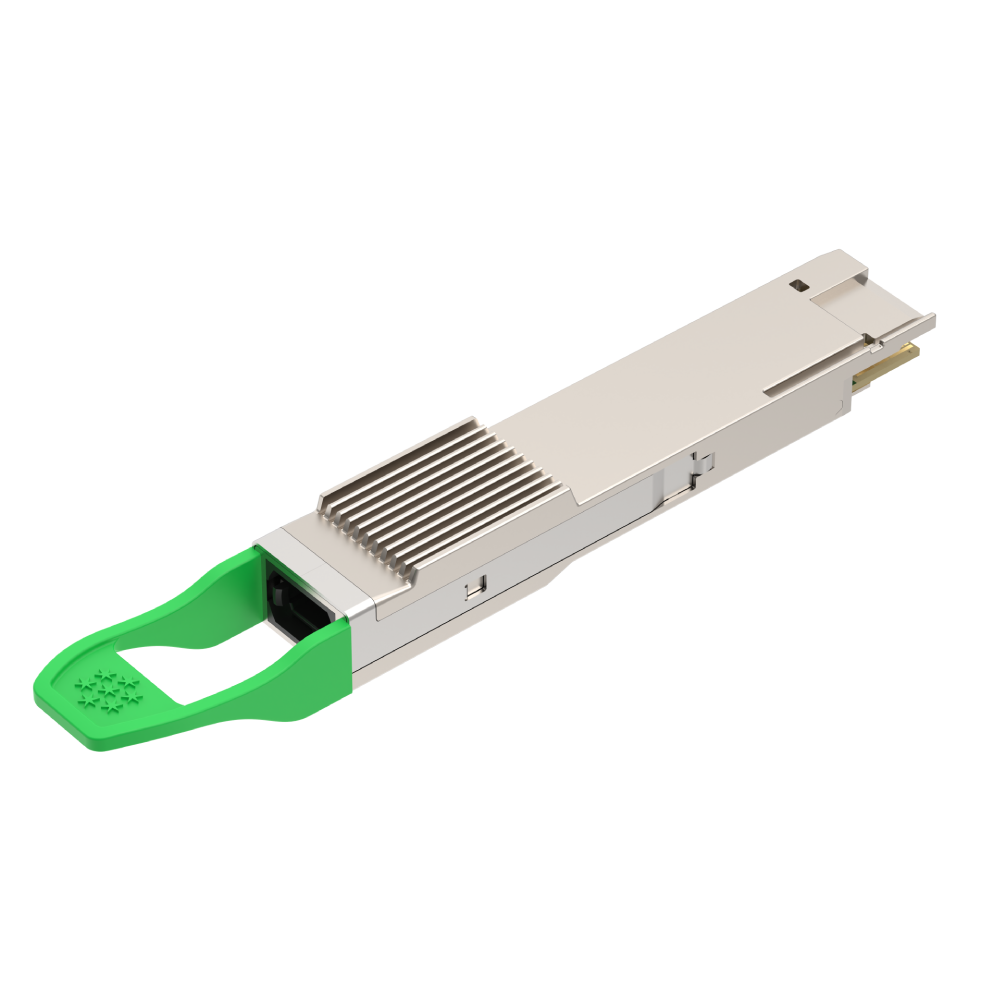

SiPh 800G QSFP-DD DR8/DR8+/DR8++ 1310nm Optical Transceiver

    GIGALIGHT’s 800G QSFP-DD DR8/DR8+/DR8++ Silicon Optical Module is a hot-pluggable optical transceiver module based on silicon photonics integration technology, designed for data center 800GBASE-DR8 Ethernet links, with 100G PAM4 and 8-way single-mode parallel technology, and supports 500m/2km/ 10km maximum transmission distance.

    Get a Quote

    Description

    • 8-channel full-duplex transceiver integrated module in QSFP-DD hot-pluggable package
    • Data rate up to 850Gbps
    • Compliant with QSFP MSA, CMIS 4.0 and 800G Ethernet transport protocols
    • Transmission using single fiber at distances up to DR8 500m/ DR8+ 2km/ DR8++ 10km (with FEC on)

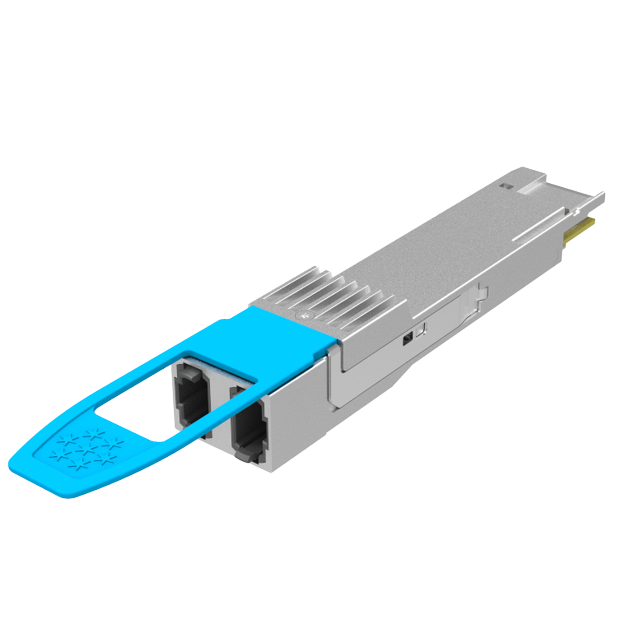

    • MPO16/APC or Dual MP012/APC optical interfaces
    • Power consumption less than 18W
    • Supports CMIS version 4.0 protocol
    • Commercial grade operating temperature range
    • Power supply voltage 3.3V
    • Comply with RoHS environmental protection standard (lead-free)
    P/N Description
    GQD-SI801DR8C SiPh 800G QSFP-DD DR8 1310nm 500m Optical Transceiver
    GQD-SI801xR8C SiPh 800G QSFP-DD DR8+ 1310nm 2km Optical Transceiver
    GQD-SI801LDR8C SiPh 800G QSFP-DD DR8++ 1310nm 10km Optical Transceiver

    Additional information

    Product Type

    Application

    Data Rate

    Protocol

    Form Factor

    Reach

    ,

    Media Type

    Wavelength

    Interface

    Data Sheet

  • GQD-SI801DR8C 800G QSFP-DD DR8 SiPh
  • GQD-SI801LDR8C 800G QSFP-DD DR8++
