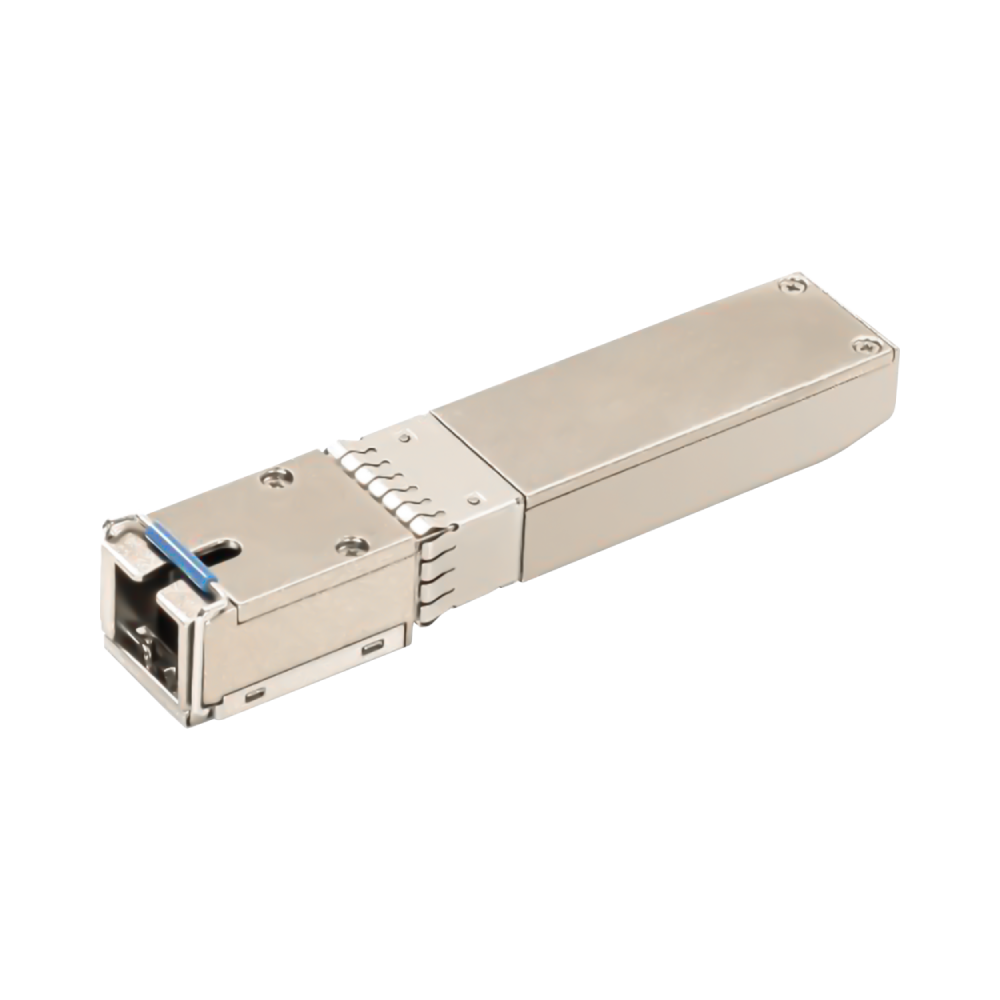

SFP+ XGS-PON OLT Class E2 20km Optical Transceiver

GIGALIGHT SFP+ XGS-PON OLT Class E2 20km optical transceiver module is an XGS-PON OLT in SFP+ package, which complies with the ITU-T G.9807.1 standard. The module supports 9.953Gbps continuous mode transmission of 1577nm EML and 9.953Gbps/2.488Gbps burst mode reception of 1270nm APD/TIA.

Description

Hot-pluggable SFP+ package
Compliant with SFP+ MSA and ITU-T G.987.2/G.9807.1 standards
Support XGS-PON OLT Class E1 application
9.953Gbps 1577nm EML Continuous Mode Transmitter
9.953Gbps/2.488Gbps 1270nm APD/TIA burst mode reception
Transmission up to 20km via single-mode fiber
Single SC optical interface
Typical power consumption 2W
Operating Temperature: Commercial Grade
Power supply voltage 3.3V
Two-wire interface for integrated digital diagnostic monitoring
RoHS 2 Compliant (Lead Free)

Additional information

Product Type	Access Network
Data Rate	≤12G
Form Factor	SFP
Protocol	XGS-PON
Interface	Single SC
Reach	2km-20km
Media Type	SMF
Wavelength	1270nm, 1577nm
