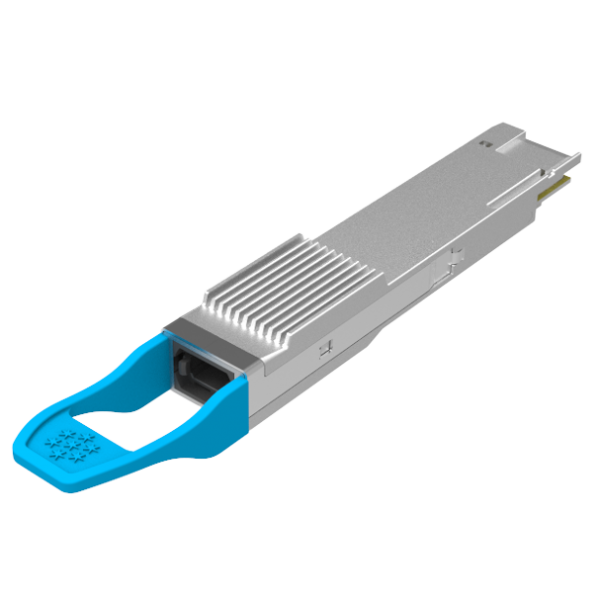

800G QSFP-DD

    The GIGALIGHT 800G QSFP-DD pluggable optical transceiver modules support 800G Ethernet and InfiniBand NDR data rates. This portfolio includes SR8 100m, SR4.2 150m, DR8 500m, DR8+ 2km, and DR8++ 10km etc.

    Get a Quote

    Description

    • Hot-pluggable QSFP-DD transceiver modules
    • 8x 100G PAM4 electrical interface
    • 8x 100G PAM4 optical interface
    • Data rate up to 106.25Gbps per channel
    • Compliant with QSFP-DD MSA, CMIS and IEEE 802.3
    • Low power dissipation
    • Commercial case operating temperature range
    • Single 3.3V power supply
    • Built-in digital diagnostic functionality
    • RoHS compliant (lead free)

    Ordering Information

    DescriptionCategoryModulation WavelengthDistanceConnectorTemp.P/N
    800G QSFP-DD VR8III-V8x100G850nm30m (OM3)
    500m (OM4)    		MPO-16
    Dual MPO-12    		CGQD-MPO801-VR8C
    800G QSFP-DD SR8III-V8x100G850nm60m (OM3)
    100m (OM4)    		MPO-16
    Dual MPO-12    		CGQD-MPO801-SR8C
    800G QSFP-DD DR8SiPh8x100G 1310nm500mMPO-16CGQD-SI801DR8C
    800G QSFP-DD DR8+SiPh8x100G1310nm2kmMPO-16CGQD-SI801xDR8C
    800G QSFP-DD DR8++SiPh8x100G1310nm10kmMPO-16CGQD-SI801LDR8C
    800G QSFP-DD 2xFR4SiPh2x400GCWDM42kmDual Duplex LC
    Dual CS    		CGQD-SI801CIR4C
    800G QSFP-DD 2xLR4SiPh2x400GCWDM410kmDual Duplex LC
    Dual CS    		CGQD-SI801LR4C
    800G QSFP-DD FR8 *III-V8x100GLWDM8 EML2kmDual Duplex LCCGQD-SPO801-FR8C
    800G QSFP-DD LR8 *III-V8x100GLWDM8 EML10kmDual Duplex LCCGQD-SPO801-LR8C
