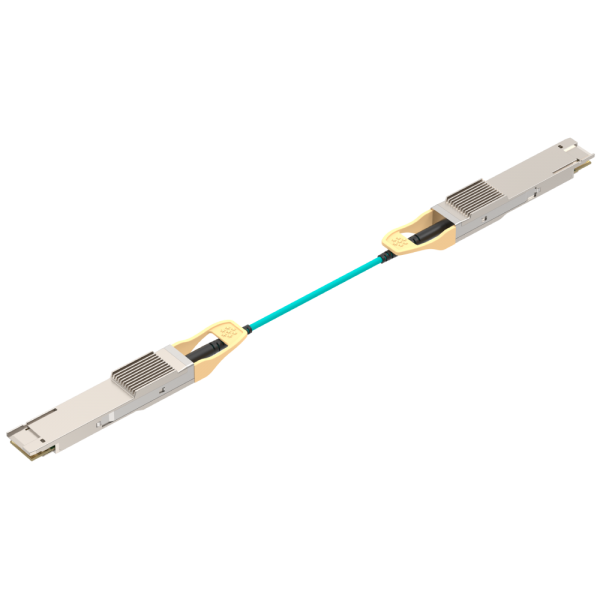

800G QSFP112-DD AOC (1～100m)

    The GIGALIGHT 800G QSFP112-DD AOC active optical cable is used for short-distance interconnection between internal devices in the data center, conforms to IEEE 802.3bm 100GBASE-SR4 Ethernet transmission protocol, and is also compatible with 800GBASE-SR8 Ethernet transfer protocol. This series of products uses 8 pairs of parallel multimode optical fiber transmission, and the distance can reach up to 60m (OM3) or 100m (OM4).

    Get a Quote

    Description

    • Active fiber optic cable assembly with one 800G QSFP-DD SR8 optical transceiver module on each end
    • 8-channel 850nm VCSEL and PIN on each end
    • Transmission rates up to 112Gbps per channel (112G PAM4)
    • Compliant with QSFP-DD MSA, CMIS 4.0 and IEEE 800GBASE-SR8 transport protocols
    • Transmission over distances up to 60m (OM3) or 100m (OM4) using 8 parallel pairs of multimode fiber optics
    • Commercial grade operating temperature range
    • Power consumption less than 14W

    • Supply voltage 3.3V

    • RoHS compliant (lead-free)
    P/N Description
    GQD-MDO801-xxxC 800G QSFP112-DD AOC, 60m(OM3) or 100m(OM4)

    Additional information

    Product Type

    Active Optical Cables
    Application

    Data Center
    Data Rate

    Protocol

    ,

    Form Factor

    Reach

    Media Type

    Wavelength
