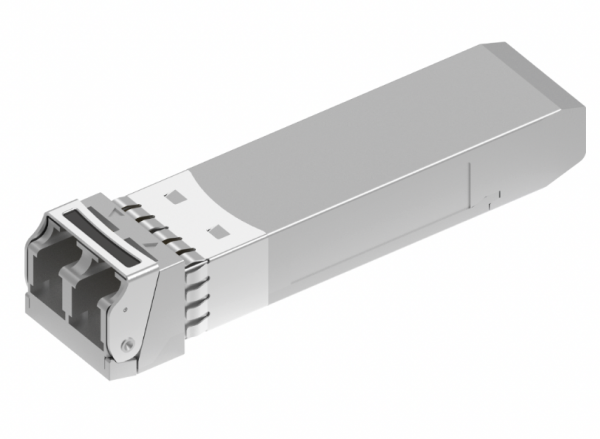

50G SFP56 FR EML 1310nm 2km Optical Transceiver Module (Industrial Grade Optional)

    The GIGALIGHT 50G SFP56 FR optical transceiver module is used for medium-distance interconnection in data centers, and complies with IEEE 802.3cd 50GBASE-FR Ethernet transmission protocol. This series of products uses a pair of single-mode optical fibers for transmission, with a center wavelength of 1310nm, a distance of up to 2km, and an optional industrial-grade operating temperature range.

    Get a Quote

    Description

    • Full-duplex transceiver integrated module in SFP56 hot-pluggable package
    • Single channel 1310nm EML and PIN
    • Transmission rate up to 53.125Gbps (50G PAM4)
    • Compliant with SFP56 MSA and IEEE 802.3cd 50GBASE-FR Ethernet transmission protocol
    • Using 1 pair of single-mode optical fiber transmission, the distance can reach up to 2km
    • Dual LC optical interface
    • Available in commercial and industrial temperature ranges
    • Power supply voltage 3.3V
    • Comply with RoHS environmental protection standard (lead-free)
    P/N Description
    GSS-SPO500-FR1C 50GE SFP56 FR EML 1310nm 2km Optical Transceiver Module
    GSS-SPO500-FR1T Industrial Grade  50GE SFP56 FR EML 1310nm 2km Optical Transceiver Module

    Additional information

    Product Type

    Application

    Data Rate

    Protocol

    Form Factor

    Reach

    Media Type

    Wavelength

    Interface

    Data Sheet

    Please contact the sales.
