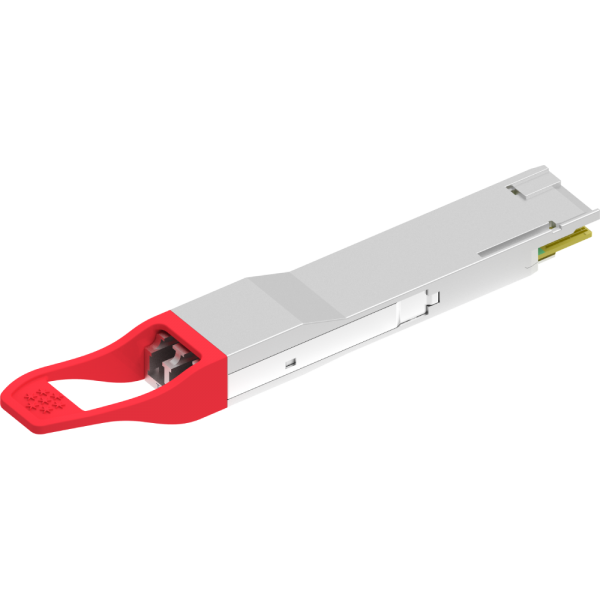

400G QSFP-DD ER8 EML LWDM8 40km Optical Transceiver

GIGALIGHT 400G QSFP-DD ER8 optical transceiver module is used for long-distance interconnection of data centers, conforms to IEEE 802.3cu 400GBASE-ER8 Ethernet transmission protocol. It has a built-in pair of 8-channel LWDM MUX and DEMUX, and uses a pair of single-mode fiber optics to transmit over distances of up to 40km (FEC needs to be turned on at the device port).

Description

Full-duplex transceiver integrated module in QSFP-DD hot-pluggable package
8-channel LWDM EML and AOD
The transmission rate per channel can reach up to 53.125Gbps (50G PAM4)
Compliant with QSFP-DD MSA and IEEE 802.3cn 400GBASE-ER8 Ethernet transmission protocol
Using 1 pair of single-mode optical fiber transmission, the distance can reach up to 40km (FEC on)
Power consumption is less than 14W
Dual LC optical interface
Commercial grade operating temperature range
Power supply voltage 3.3V
Comply with RoHS environmental protection standard (lead-free)

P/N	Description
GQD-SPO401-ER8C	400GE QSFP-DD ER8 EML LWDM8 40km Optical Transceiver Module

Additional information

Product Type	Pluggable Optical Modules
Application	Data Center
Data Rate	400G
Protocol	Ethernet
Form Factor	QSFP-DD
Reach	25km-50km
Media Type	SMF
Wavelength	LAN-WDM
Interface	Dual LC
