25g-sfp28-sr

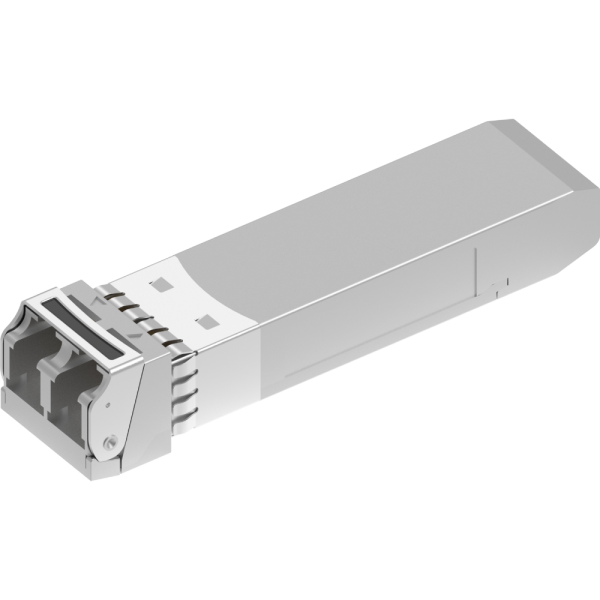

32GFC SFP28 eSR VCSEL 850nm 100m Optical Modules (Industrial Grade Optional)

GIGALGIHT 32GFC SFP28 eSR optical transceiver module is designed for short-distance interconnection between storage area network devices in data centers. It complies with the 32G Fibre Channel (FC) channel transmission protocol and is also backward compatible with 8G/16G FC channel transmission protocols. This product series is an enhanced version of the 32GFC SFP28 SR module and uses multimode fiber for transmission. It supports distances of up to 200m (OM3) or 300m (OM4) and is available with an industrial-grade operating temperature range.

Description

Hot-pluggable SFP28 transceiver modules
Single channel with 850nm VCSEL and PIN ROSA
Data rate up to 28.05Gbps
Compliant with SFP28 MSA and 32G Fibre Channel
Downward compatible with 8G/16G Fibre Channel transport protocols
Transmission over 1 pair of multimode fibers up to 70m (OM3) or 100m (OM4)
Transmission up to 200m (OM3) or 300m (OM4) while FEC on
Power dissipation less than 1W
Dual LC optical interface
Commercial and industrial case operating temperature range
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

P/N	Product Description
GSS-MPO280-eSRC	32GFC SFP28 eSR VCSEL 850nm 100m Optical Transceiver
GSS-MPO280-eSRT	Industrial 32GFC SFP28 eSR VCSEL 850nm 100m Optical Transceiver

Additional information

Product Type	Pluggable Optical Modules
Data Rate	14G-28G
Form Factor	SFP28
Application	Data Center
Reach	< 500m
Wavelength	850nm
Media Type	MMF
Interface	Dual LC
Protocol	Fibre Channel

Data Sheet
