25g-dwdm-sfp28

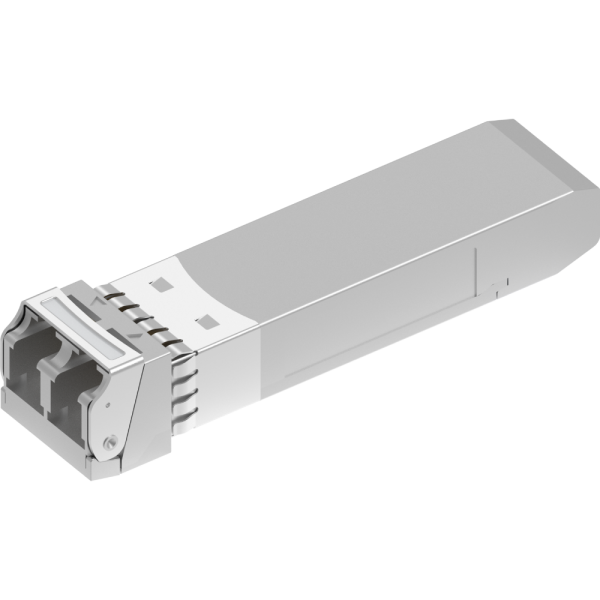

32GFC SFP28 DWDM 10km Optical Modules (Industrial Grade Optional)

GIGALIGHT 32GFC SFP28 LR optical transceiver module is designed for long-distance interconnection in storage area networks of data centers. It complies with the 32G Fibre Channel (FC) channel transmission protocol and is also backward compatible with 8G/16G FC channel transmission protocols. This product series uses single-mode fiber for transmission with a center wavelength range from DWDM C17-C61 series (100GHz spacing).

Description

Hot-pluggable SFP28 transceiver modules
Single channel with DWDM C17-C61 100Ghz EML and PIN ROSA
Data rate up to 28.05Gbps
Compliant with SFP28 MSA and 32G Fibre Channel
Downward compatible with 8G/16G Fibre Channel transport protocols
Transmission over 1 pair of multimode fibers up to 10km
Power dissipation less than 2W
Dual LC optical interface
Commercial and industrial case operating temperature range
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

P/N	Product Description
GSS-Dxx280-LRC	32GFC SFP28 DWDM 10km Optical Transceiver
GSS-Dxx280-LRT	Industrial 32GFC SFP28 DWDM 10km Optical Transceiver

Additional information

Product Type	Pluggable Optical Modules
Data Rate	14G-28G
Form Factor	SFP28
Application	Data Center
Reach	2km-20km
Wavelength	DWDM
Media Type	SMF
Interface	Dual LC
Protocol	Fibre Channel

Data Sheet

Industrial Grade 32GFC SFP28 DWDM 10km – GSS-Dxx280-LRT
