2U 3.2T DCI BOX

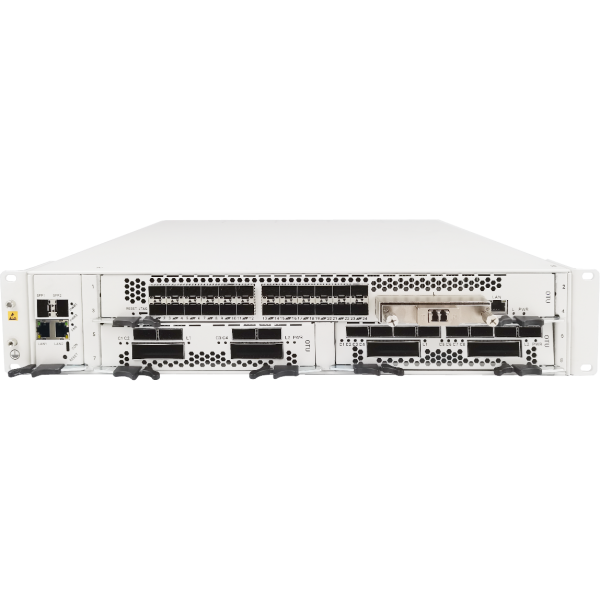

    2U 3.2T DCI BOX 1.0

    The GIGALIGHT 2U 3.2T DCI BOX 1.0 supports multi-service and large-capacity transmission networking applications. It is mainly used in the interconnection of data center rooms of operators and Internet companies, and can also be applied for various transmission applications in the convergence layer of the local network/metropolitan area network and the long-distance network of the access layer.

    Get a Quote

    Description

    • Modular design, on-demand configuration, smooth upgrade, AC/DC power supply and fans are modular design
    • Supports hot swap, flexible replacement according to demand
    • Large capacity, ultra-high density, 2Tbps line side access and bidirectional 3.2Tbps electrical layer processing capability, up to 3.2Tbps processing capacity per 2U rack
    • Ultra-low power consumption, based on state-of-the-art single-carrier 200G/400G coherent DSP and photonic integration technologies, including CFP2-DCO and terminal optics
    • Space-saving modular optical layer function, realize the modularization and miniaturization of various optical layer devices, and flexibly realize optical layer services
    • Front-to-back airflow design, AC/DC power supply, reasonable height, width and depth design, adapt to the server rack requirements of the data center computer room, and can be deployed with the server on the same rack
    • Simple operation and maintenance, based on the SDN design concept, open APIs, can be quickly automated and integrated in any IT operating environment to achieve rapid service deployment
    • Supports unified network management platform based on SNMP, network management methods CLI (telnet and console), Web, NetRiver (graphical interface)

    Specifications

    Parameters Specifications
    Max. Capacity 8x 400G
    Wavelength (Frequency) Range 1529.16nm to 1567.14nm（191.30THz to 196.05THz）
    Capacity per Wavelength 400G/200G/100G, QPSK/16QAM/16QAMps
    Physical Network Topology Chain, Star, Ring
    Environmental Requirements Operating Temperature -10 to +70
    Storage Temperature -40 to +80
    Relative Humidity 5% to 95% (no condensation)
    Dimension 440mm (W) × 88mm (H) × 420mm (D)
    Cooling Front-to-back Airflow, 4 +1 FRU Fans
    Structure All-in-one Chassis, 19-inch Rack
    Power Supply AC (90V to 264V, 50/60HZ), DC (-36V to 60V)
    Safety and EMC FCC, UL, CE, TUV, CSA
    Power Consumption < 300W
