100G QSFP28 BiDi LR1 EML 1271nm/1331nm 10km Optical Transceiver

GIGALIGHT 100G QSFP28 BiDi LR1 single-fiber optical transceiver module is designed for 100G Ethernet links over 10km of single-mode fiber transmission. The module contains a single channel of optical signals operating at 100Gbps data rates. The module can convert four 25Gbps (NRZ) electrical signals to one 100Gbps (PAM4) optical signal or one 100Gbps (PAM4) optical signal to four 25Gbps (NRZ) electrical signals. The electrical interface of the module is compliant with OIF CEI-28G-VSR and QSFP28 MSA.

Description

Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
Single-channel 100G PAM4 1271nm/1331nm cooled EML transmitter and PIN receiver
Transmission rates of up to106.25Gbps
Compliant with QSFP28 MSA (SFF-8665) and 100G Lambda MSA 100G-LR1-10
Built-in 4:1 gearbox DSP on receiver and transmitter channels
Transmission up to 10km on SMF using KP4 FEC
Simplex LC optical interface
Maximum power consumption 4.5W
Built-in digital diagnostic function
Commercial operating temperature range
Supply voltage 3.3V
RoHS compliant (lead-free)

P/N	Description	Color of Latch

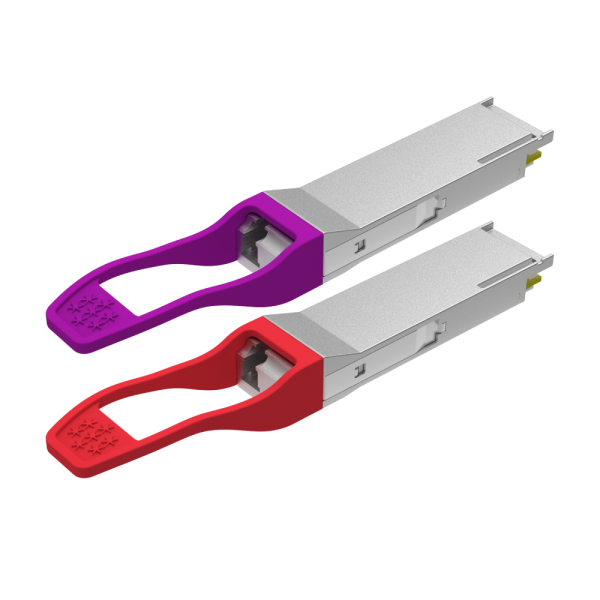

GBQ-2733101-LR1	100G QSFP28 BiDi LR1 EML Tx-1271nm Rx-1331nm 10km	Purple
GBQ-3327101-LR1	100G QSFP28 BiDi LR1 EML Tx-1331nm Rx-1271nm 10km	Red

Additional information

Product Type	Pluggable Optical Modules
Application	Data Center
Data Rate	100G
Protocol	Ethernet
Form Factor	QSFP28
Reach	2km-20km
Media Type	SMF
Wavelength	BiDi
Interface	Single LC

Data Sheet

100G BIDI LR1 10km QSFP28 Optical Transceiver
