Description

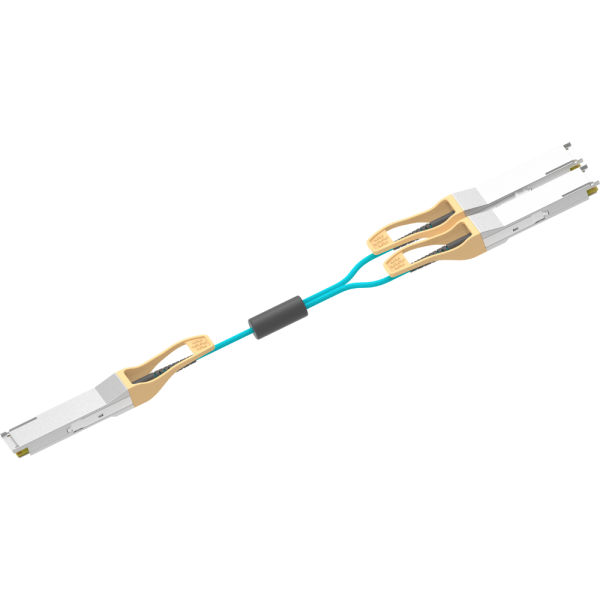

• An active optical cable assembly integrating one 100G QSFP28 SR4 and two 50G QSFP28 SR2 optical transceiver modules at both ends
• Each side contains 4 channels of 850nm VCSEL and PIN
• The transmission rate per channel can reach up to 28.05Gbps
• Receive and transmit channel built-in CDR circuit, support CDR bypass
• Compliant with QSFP28 MSA and 128GFC/4x32GFC fiber channel transmission protocol
• Compatible with IEEE 802.3bm 100GBASE-SR4 Ethernet transmission protocol
• Using 4 pairs of parallel multimode optical fiber transmission, the distance can reach up to 70m (OM3) or 100m (OM4)
• Power consumption less than 2W (100G QSFP28 SR4 module) or 1.5W (each 50G QSFP28 SR2 module)
• Commercial grade operating temperature range
• Power supply voltage 3.3V
• Comply with RoHS environmental protection standard (lead-free)
